Item Code: LT-32

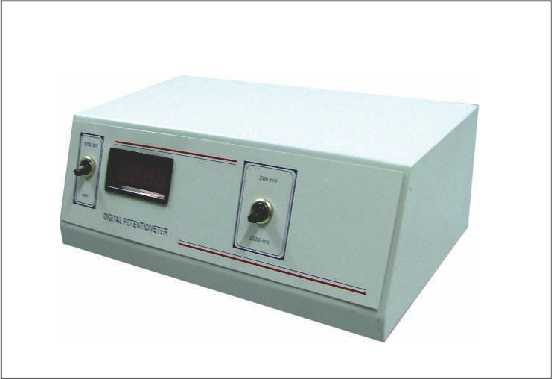

Digital Potentiometer, is a precision instrument for potentiometeric measurements. Results are displayed in milli volts on a direct digital readout by light emitting diodes(LED).
Technical Specifications
| Range | 0 to+ 1999.9mV |
| Resolution | 1 mV |
| Repeatability | + 1 mV |
| Accuracy | + 1 mV +digit |
| Input Impedancy | 10 ohms |
| Operating Temperature | 10 to 50oC |
| Display | 3 1/2 Digit 0.5 seven segment LED display Indication |
| Power | 230V + 10?, 50Hz |
| Dimensions | 76 x 275 x 170 mm. |
| Weight | 2 Kg (approx.) |
| Standard Accessories | |
| Electrode | 2 Nos. |
| Dust Cover | 1 No. |
| Electrode Stand | 1 No. |
| Manual | 1 No |
